Description
Why follow tracks when you can make your own? Experience the “foot out, flat out” fun of fat bike riding in any season. Whether you’re tackling fresh snow pack or drifty sand dunes for days, the new Yukon will keep you rallying your favorite terrain in a whole new way.
KEY PERFORMANCE FACTORS
Low Center of Gravity Playful Trail Bike
Sloping “low slung” front triangle design provides a low center of gravity for technical maneuvering with ease or countersink control in deep conditions.
Maximum Heel Clearance with Low Q-Factor
With a heavily swaged rear triangle including dropouts, seatstays and chainstays, this versatile design allows even warmest of riding boots to be worn, while the narrow Q-Factor crank specification provides a more natural feeling cycling experience.
Custom Wheelbase Adjustment and Tire Size Flexibility
The horizontal adjustable drop out system allows for +/- 15mm rear center length adjustment and tire sizing up 27.5 X 4.5” for maximum floatation to and a fun, playful ride.
| Sizes | S |
| Colours |

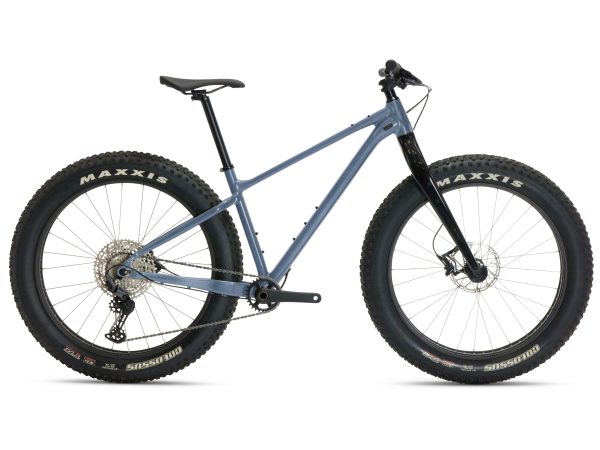

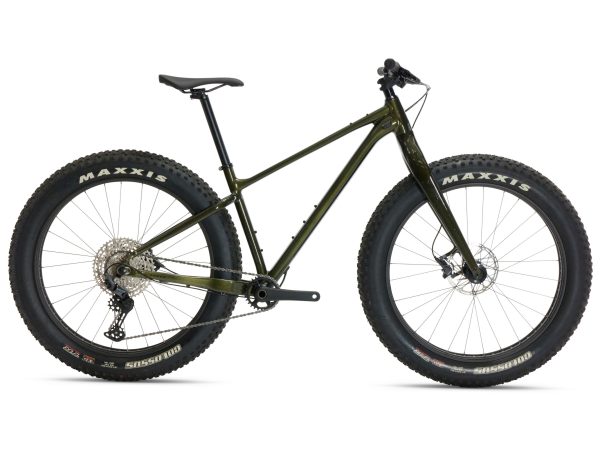

Knight Shield, Phantom Green
|
| Frame |
ALUXX SL-Grade Aluminum with horizontal dropouts, 12×197
|
| Fork |
rigid composite with alloy steerer, 15×150, with low rider rack mounts
|
| Shock |
N/A
|
| Handlebar |
Giant Connect Trail, 780×31.8mm
|
| Grips |
Giant Tactal Single
|
| Stem |
Giant Contact S:50mm, M:50mm, L:60mm, XL:60mm
|
| Seatpost |
Giant Connect, 30.9mm S:375mm, M:375mm, L:400mm, XL:400
|
| Saddle |
Giant Sport Comfort
|
| Pedals |
N/A
|
| Shifters |
Shimano Deore, 1×12
|
| Front Derailleur |
N/A
|
| Rear Derailleur |
Shimano Deore
|
| Brakes |
SRAM Level, hydraulic [F]180mm, [R]160mm rotors
|
| Brake Levers |
SRAM Level
|
| Cassette |
Shimano Deore M6100, 10×51
|
| Chain |
Shimano
|
| Crankset |
ProWheel MPX, 28t S:170mm, M:170mm, L:175mm, XL:175mm
|
| Bottom Bracket |
ProWheel, press fit
|
| Rims |
Giant FBR alloy, 27.5″, 85mm
|
| Hubs |
[F] Giant 15×150 sealed bearing [R] Giant 12×197 sealed bearing
|
| Spokes |
stainless, 14g
|
| Tires |
Maxxis Colossus 27.5×4.5, foldable, TR
|
| Weight |
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
|
Download PDF
Additional information
| color | Black, Blue, Red |
|---|
SIZING GUIDE AND GEOMETRY
| A | SEAT TUBE LENGTH (mm) | 185 |
| B | SEAT TUBE ANGLE | 73.0° |
| C | TOP TUBE LENGTH (mm) | 302 |
| D | HEAD TUBE LENGTH (mm) | 90 |
| E | HEAD TUBE ANGLE | 71.0° |
| F | FORK RAKE (mm) | 35 |
| G | TRAIL (mm) | 80.7 |
| H | WHEELBASE (mm) | 614 |
| I | CHAIN STAY LENGTH (mm) | 257 |
| J | BOTTOM BRACKET DROP (mm) | 28 |
| K | STACK (mm) | 287 |
| L | REACH (mm) | 214 |
| M | STAND OVER HEIGHT (mm) | 344 |
| N | HANDLEBAR WIDTH (mm) | 470 |
| O | STEM LENGTH (mm) | 40 |
| P | CRANK LENGTH (mm) | 89 |
| Q | WHEEL SIZE | 12″ |
TECHS & FEATURES
