Description

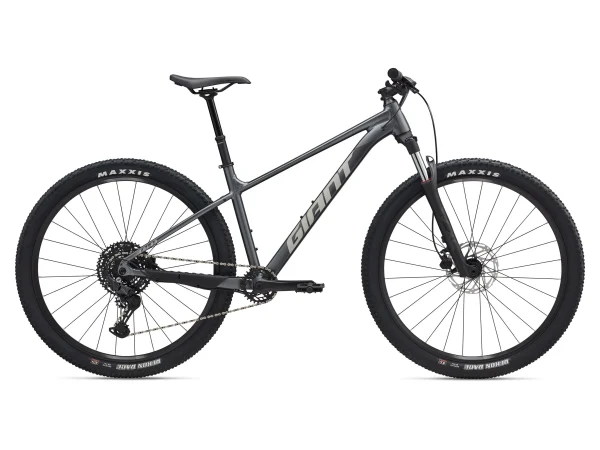

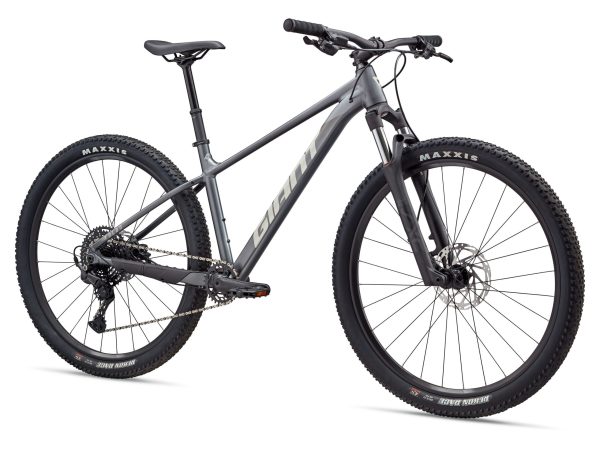

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs, and a 1x drivetrains, this aluminium hardtail is everything an aspiring MTB rider needs to evolve and advance.
KEY PERFORMANCE FACTORS
Modern MTB Design

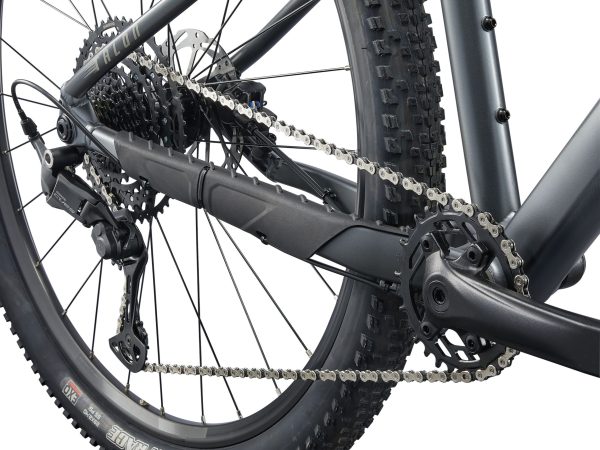

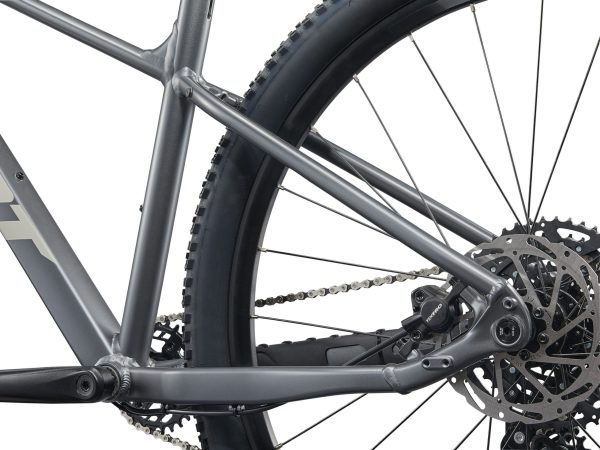

Tapered fork steerer tubes, quality components including a 1x drivetrain with clutch-equipped rear derailleurs, thru-axle hubs, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow.
Off-Road Control
New geometry is optimised for confident trail riding and wheel size (29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tyres (up to 2.4-inch) for traction and grip on technical terrain.
Light and Durable

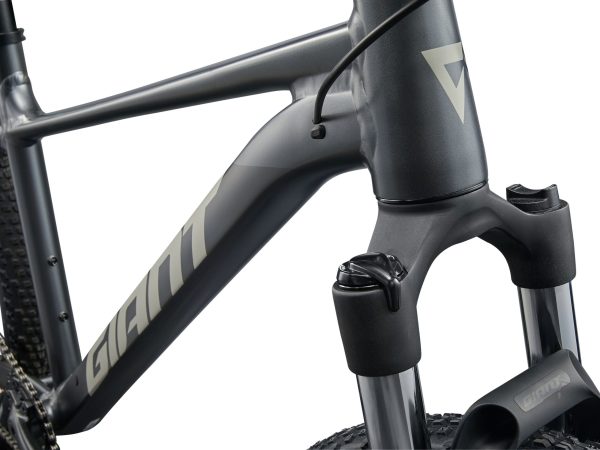

All-new ALUXX aluminium frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.
| Sizes | S.M |
| Colours |

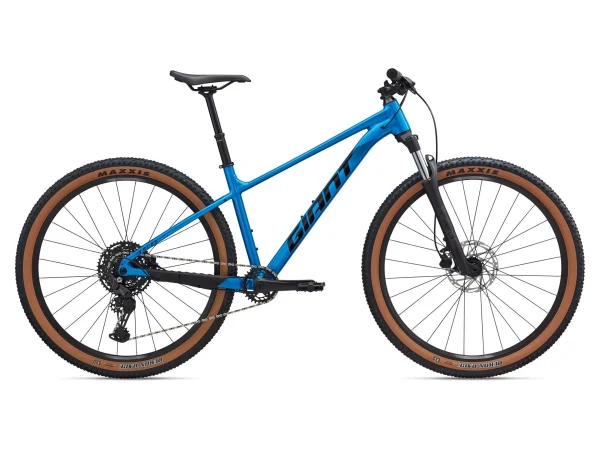

Gloss Metallic Blue, Satin Charcoal
|
| Frame | ALUXX grade aluminium |
| Fork |

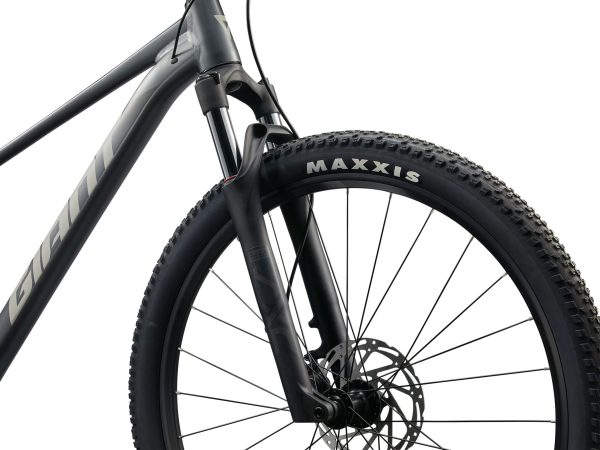

SXC32-3 RCL, coil sprung, hydraulic lockout, tapered aluminium steerer, 15×110 thru axle XS&S: 80mm travel (27.5) M-XXL:100mm travel (29)
|
| Shock | N/A |

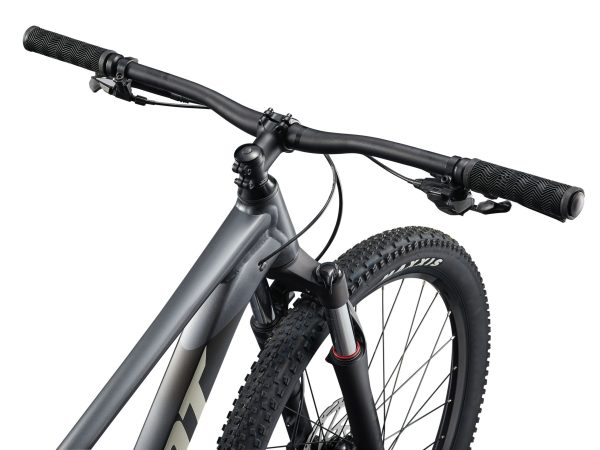

| Handlebar | Giant Connect Trail, 31.8mm XS&S: 690mm (27.5) M-XXL: 780mm (29) |
| Stem |
Giant Sport, 7-degree rise
|
| Seatpost |

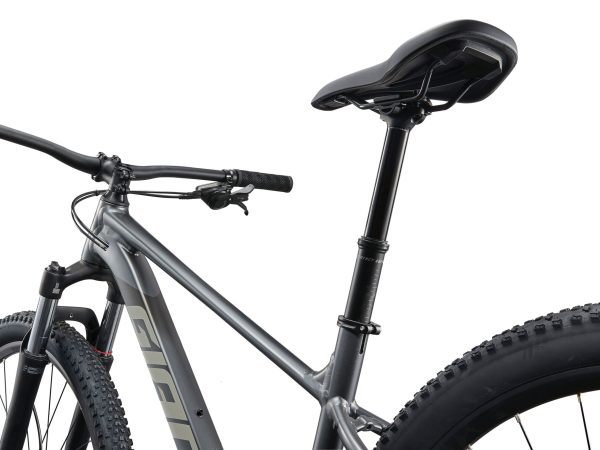

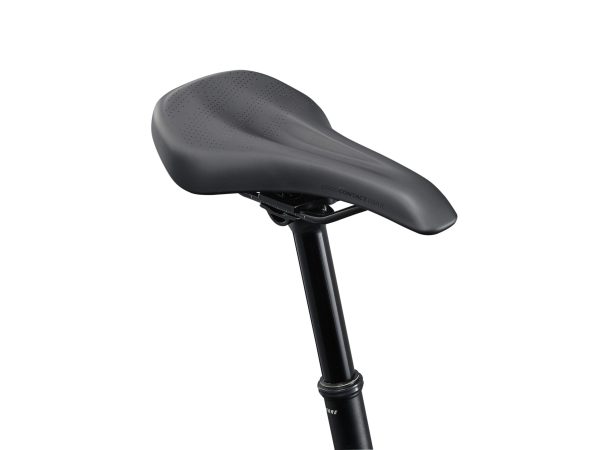

Giant Contact Switch Core 2 position dropper post, 30.9mm XS&S: 100mm drop x 350mm (27.5) M-XXL: 120mm drop x 400mm (29)
|
| Saddle |
Giant ErgoContact Trail
|
| Pedals | MTB caged |
| Shifters |
Shimano CUES SL-6000, 1×10
|
| Front Derailleur |
N/A
|
| Rear Derailleur |

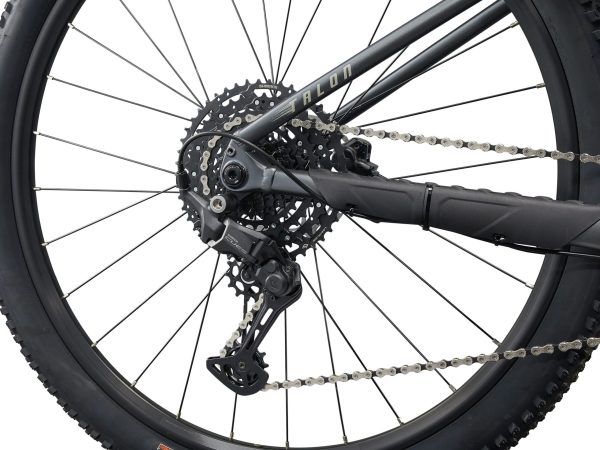

Shimano CUES RD-U6000
|
| Brakes |

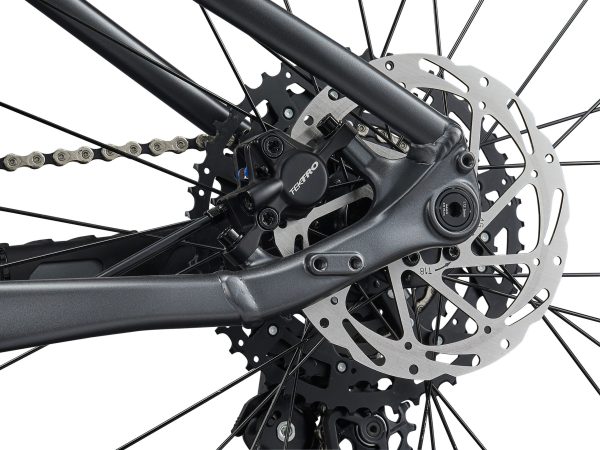

Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm
|
| Brake Levers |
Tektro HDC M275
|
| Cassette |
Shimano CUES, CS-LG300, 11×48
|
| Chain | KMC X-11 |
| Crankset |
ProWheel Charm, 32t (27.5) or 30t (29)
|
| Bottom Bracket | cartridge |
| Rims |
Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
|
| Hubs |
alloy, sealed bearing, [F] 15×110 thru axle, [R] 12×142 thru-axle |
| Spokes |
stainless, 14g
|
| Tires |

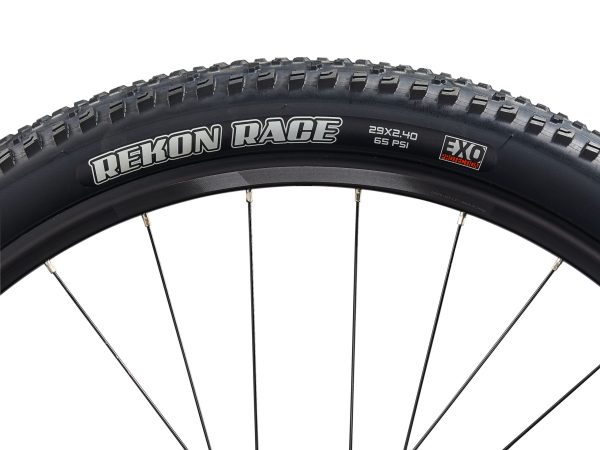

Maxxis Rekon 27.5×2.4″ or Maxxis Rekon Race 29×2.4″, wire bead
|
| Extras |
Max Tyre Clearance2.4″
|
| Weight |
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
|
Download PDF
Additional information
| color | Black, Blue, Red |
|---|
SIZING GUIDE AND GEOMETRY
| A | SEAT TUBE LENGTH (mm) | 185 |
| B | SEAT TUBE ANGLE | 73.0° |
| C | TOP TUBE LENGTH (mm) | 302 |
| D | HEAD TUBE LENGTH (mm) | 90 |
| E | HEAD TUBE ANGLE | 71.0° |
| F | FORK RAKE (mm) | 35 |
| G | TRAIL (mm) | 80.7 |
| H | WHEELBASE (mm) | 614 |
| I | CHAIN STAY LENGTH (mm) | 257 |
| J | BOTTOM BRACKET DROP (mm) | 28 |
| K | STACK (mm) | 287 |
| L | REACH (mm) | 214 |
| M | STAND OVER HEIGHT (mm) | 344 |
| N | HANDLEBAR WIDTH (mm) | 470 |
| O | STEM LENGTH (mm) | 40 |
| P | CRANK LENGTH (mm) | 89 |
| Q | WHEEL SIZE | 12″ |
TECHS & FEATURES
