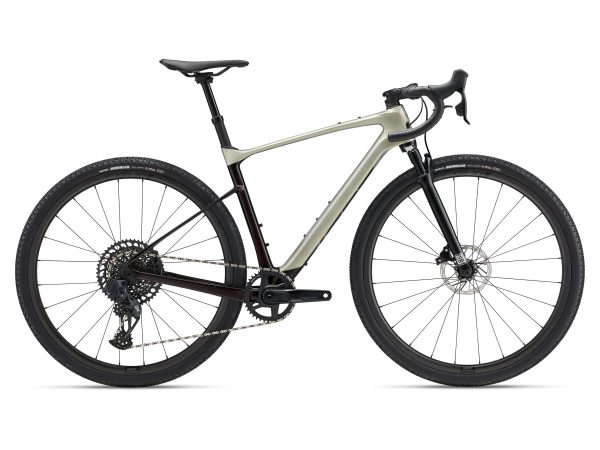

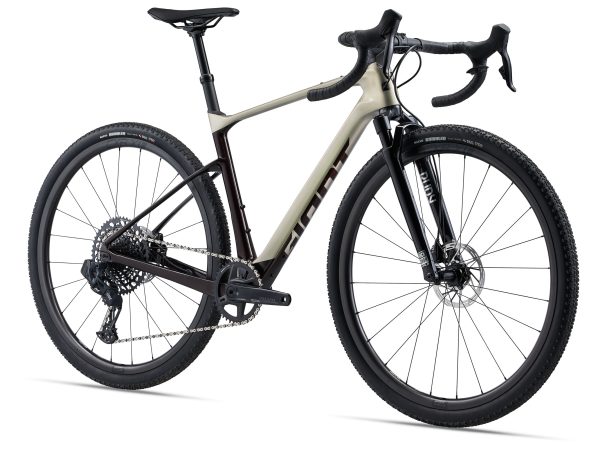

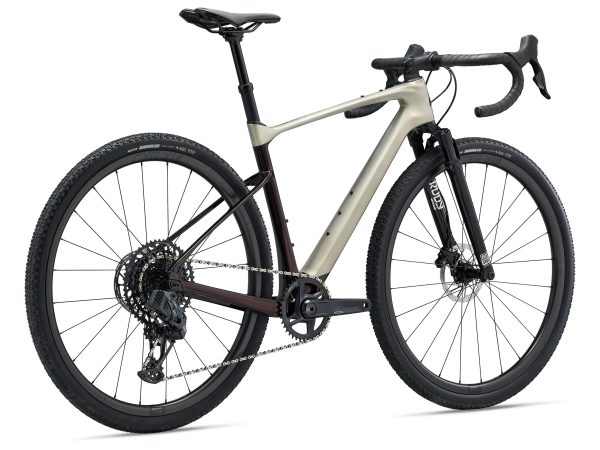

Revolt X Advanced Pro 1
$5,450.00 $3,542.50
Model: 2024
- Description
- Additional information
- SIZING GUIDE AND GEOMETRY
- TECHS & FEATURES
- Reviews (0)
- Vendor Info
- More Products
Description
Washboard descents, sketchy dirt, gravel and rocks of all shapes and sizes. You never know what you’ll get on a gravel ride. This composite gravel machine has front suspension and engineered compliance to help you float through it all with speed and control.
KEY PERFORMANCE FACTORS
Smooth control
Composite frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs impacts so you can ride smoother and faster on rugged gravel and dirt.
Tuned compliance
Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm. You can choose the included dropper/suspension seatpost for added
| Sizes | S |
| Colours |
Gloss Golden Haze/Cordovan
|
| Frame |
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
|
| Fork |
RockShox Rudy Ultimate XPLR, 40mm, Charger Race Day damper12x100mm thru-axle
|
| Shock |
N/A
|
| Handlebar |
Giant Contact SL XR D-Fuse, 31.8mm S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
|
| Grips |
Stratus Lite 3.0
|
| Stem |
Giant Contact, 8-degree S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80mm
|
| Seatpost |
Post Moderne, dropper, 30.9mm with 30mm of suspension S:415mm / 100mm drop M:415mm / 100mm drop M/L: 415mm / 100mm drop L:415mm / 100mm drop XL: 415mm / 100mm drop
|
| Saddle |
Giant Approach SL
|
| Pedals |
PEDALS NOT SUPPLIED
|
| Shifters |
SRAM Rival eTap AXS, 1×12
|
| Front Derailleur |
N/A
|
| Rear Derailleur |
SRAM GX Eagle AXS
|
| Brakes |
SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
|
| Brake Levers |
SRAM Rival eTap AXS hydraulic
|
| Cassette |
SRAM XG-1275, 12-speed, 10×52
|
| Chain |
SRAM GX Eagle
|
| Crankset |
SRAM Rival D1 DUB, 40t S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
|
| Bottom Bracket |
SRAM DUB, press fit
|
| Rims |
Giant CXR 1 X1 Carbon Disc WheelSystem, [F] 25.8mm, [R] 25.8mm
|
| Hubs |
[F] Giant CXR X alloy, CenterLock, 12mm thru-axle, [R] Giant CXR X alloy, 60t ratchet driver, CenterLock, 12mm thru-axle
|
| Spokes |
Sapim Laser
|
| Tires |
Maxxis Rambler, 700x45c, tubeless prepared
|
|
Extras
|
Factory tubeless set up
|
|
Max Tyre Clearance
|
53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position
|
|
Max Chainring Size
|
SRAM Wide 1x 44T. Shimano GRX 1x 42T
|
|
Weight
|
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
|
Download PDF
Additional information
| color | Black, Blue, Red |
|---|
SIZING GUIDE AND GEOMETRY
| A | SEAT TUBE LENGTH (mm) | 185 |
| B | SEAT TUBE ANGLE | 73.0° |
| C | TOP TUBE LENGTH (mm) | 302 |
| D | HEAD TUBE LENGTH (mm) | 90 |
| E | HEAD TUBE ANGLE | 71.0° |
| F | FORK RAKE (mm) | 35 |
| G | TRAIL (mm) | 80.7 |
| H | WHEELBASE (mm) | 614 |
| I | CHAIN STAY LENGTH (mm) | 257 |
| J | BOTTOM BRACKET DROP (mm) | 28 |
| K | STACK (mm) | 287 |
| L | REACH (mm) | 214 |
| M | STAND OVER HEIGHT (mm) | 344 |
| N | HANDLEBAR WIDTH (mm) | 470 |
| O | STEM LENGTH (mm) | 40 |
| P | CRANK LENGTH (mm) | 89 |
| Q | WHEEL SIZE | 12″ |
TECHS & FEATURES
