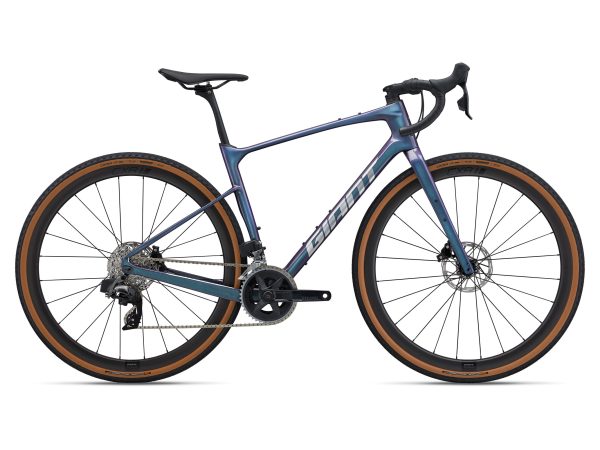

Revolt Advanced Pro 1
$5,048.00 $3,024.00
Model: 2024
- Description
- Additional information
- SIZING GUIDE AND GEOMETRY
- TECHS & FEATURES
- Reviews (1)
- Vendor Info
- More Products
Description
Fast gravel is fun gravel. The bike of choice for Giant gravel racing pros, this superlight speedster delivers a smooth ride over rugged roads, and is adaptable to all types of conditions and riding styles.
KEY PERFORMANCE FACTORS
Lightweight efficiency
Advanced composite frame and Advanced SL composite fork save a combined 200g compared to previous generation. Updated geometry includes a lower bottom bracket, longer reach, and steeper head tube angle for improved acceleration and climbing.
Tuned compliance

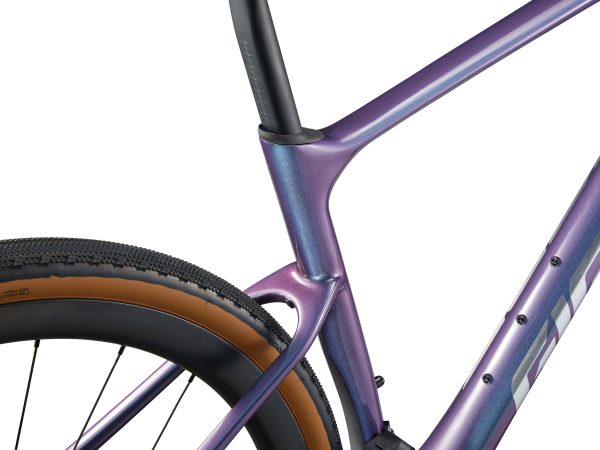

A lowered seatstay junction with smaller diameter tubes absorbs road shocks and vibrations. The Contact SLR D-Fuse carbon handlebar and D-Fuse seatpost work as a system to optimize compliance without sacrificing stiffness while cornering, sprinting and climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
| Sizes | S |
| Colours |
Blue Dragonfly/Chrome
|
| Frame |
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
|
| Fork |
Advanced SL-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
|
| Shock |
N/A
|
| Handlebar |
Giant Contact SLR XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
|
| Grips |
Stratus Lite 3.0
|
| Stem |
Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
|
| Seatpost |
Giant D-Fuse SLR w/ offset -5/+15
|
| Saddle |
Giant Approach SL
|
| Pedals |
N/A
|
| Shifters |
Sram Force AXS HRD, 2×12
|
| Front Derailleur |
Sram Force AXS Wide
|
| Rear Derailleur |
Sram Force AXS, Max 36T
|
| Brakes |
Sram ForceTap AXS HRD, SRAM Centerline rotors [F]160mm, [R]160mm
|
| Brake Levers |
SRAM Force AXS HRD (hydraulic road disc)
|
| Cassette |
Sram Force, XG-1270, 12-speed, 10-36
|
| Chain |
SRAM FORCE D1, 12-speed
|
| Crankset |
Sram Force D2 DUB,30/43 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
|
| Bottom Bracket |
SRAM DUB, press fit
|
| Rims |
Giant CXR 1 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
|
| Hubs |
[F] Giant AR alloy, CenterLock, 12mm thru-axle, [R] Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle
|
| Spokes |
Sapim CX-Ray
|
| Tires |
CADEX AR, 700x40c, tubeless
|
|
Extras
|
tubeless prepared, 53mm max tire size in “long” flip chip position, 45mm max tire size in “short” flip chip position
|
|
Weight
|
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
|
Download PDF
Additional information
| color | Black, Blue, Red |
|---|
SIZING GUIDE AND GEOMETRY
| A | SEAT TUBE LENGTH (mm) | 185 |
| B | SEAT TUBE ANGLE | 73.0° |
| C | TOP TUBE LENGTH (mm) | 302 |
| D | HEAD TUBE LENGTH (mm) | 90 |
| E | HEAD TUBE ANGLE | 71.0° |
| F | FORK RAKE (mm) | 35 |
| G | TRAIL (mm) | 80.7 |
| H | WHEELBASE (mm) | 614 |
| I | CHAIN STAY LENGTH (mm) | 257 |
| J | BOTTOM BRACKET DROP (mm) | 28 |
| K | STACK (mm) | 287 |
| L | REACH (mm) | 214 |
| M | STAND OVER HEIGHT (mm) | 344 |
| N | HANDLEBAR WIDTH (mm) | 470 |
| O | STEM LENGTH (mm) | 40 |
| P | CRANK LENGTH (mm) | 89 |
| Q | WHEEL SIZE | 12″ |
TECHS & FEATURES
