Description

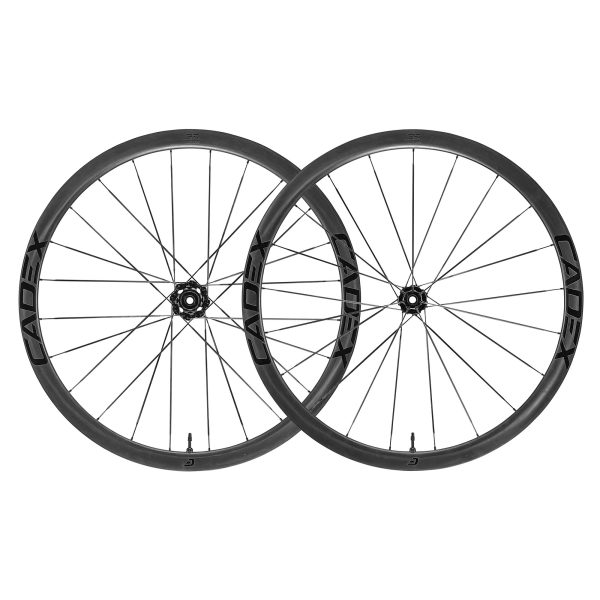

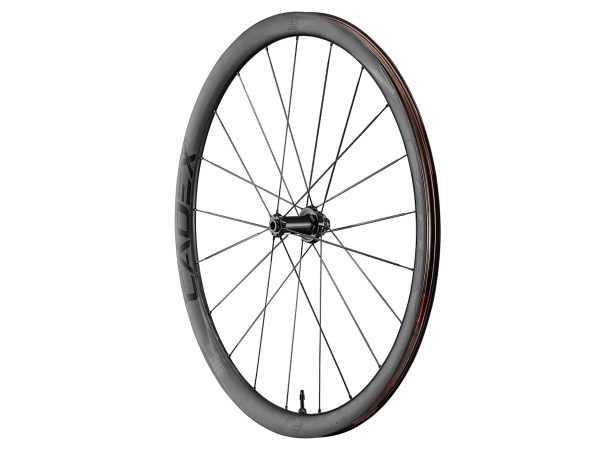

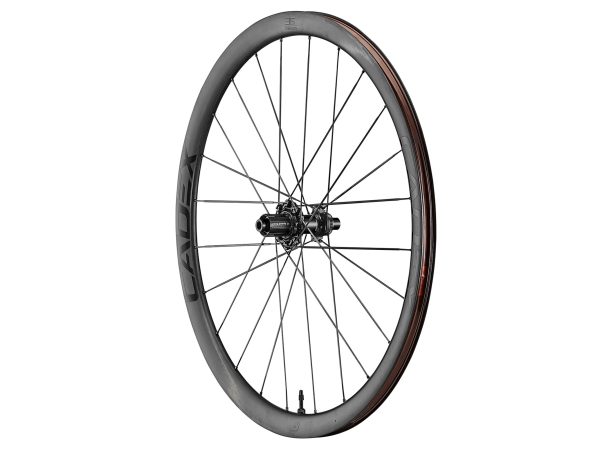

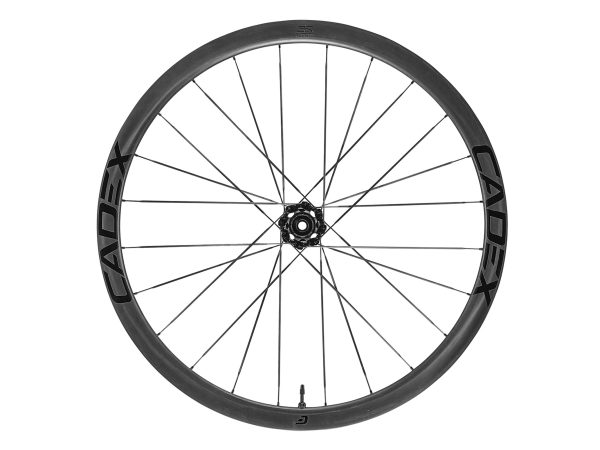

The CADEX 36 Disc WheelSystem is a versatile, lightweight composite wheel built for real-world performance. Featuring a hookless rim design with optimal 22.4mm internal width and 36mm depth, it delivers unbeatable acceleration and climbing efficiency as well as confident handling on descents, in the wind and on varied terrain.
KEY PERFORMANCE FACTORS
| Rim Material | Carbon |
| Rim Type |
Hookless Clincher
|
| Tubeless |
CADEX Tubeless System (rim tape and valve kit included)
|
| Suggested Tire Size |
700 x 25C – 700 x 32C
|
| Rim Height | 36mm |
| Rim Outer Width |
26mm
|
| Rim Inner Width |
22.4mm
|
| ETRTO |
622-22
|
| Front Hub |
CADEX R1-C30 Hub, Centerlock
|
| Rear Hub |
CADEX R1-C30 Hub, Ratchet Driver, Centerlock
|
| Hub Compatibility |
Shimano 11 (equipped) / SRAM XDR 12 (not included) / Campagnolo (not included)
|
| Bearing |
CADEX Ceramic Bearings
|
| Front Axle |
100×12 Thru Axle
|
| Rear Axle |
142×12 Thru Axle
|
| Spokes (Front) |
Aero Carbon Spoke
|
| Lacing (Front) |
DBL, 21H
|
| Spokes (Rear) |
Aero Carbon Spoke
|
| Lacing (Rear) |
DBL, 24H
|
| Nipple Type |
Alloy, Internal
|
| Warranty |
2 year warranty
|
|
Incident Replacement
|
5 Year (registered original owner only)
|
|
Weight (Pair)
|
1302g
|
|
WheelSystem Weight Limit:
|
285 lbs / 129 kg
|
Download PDF
Additional information
| color | Black, Blue, Red |
|---|
SIZING GUIDE AND GEOMETRY
| A | SEAT TUBE LENGTH (mm) | 185 |
| B | SEAT TUBE ANGLE | 73.0° |
| C | TOP TUBE LENGTH (mm) | 302 |
| D | HEAD TUBE LENGTH (mm) | 90 |
| E | HEAD TUBE ANGLE | 71.0° |
| F | FORK RAKE (mm) | 35 |
| G | TRAIL (mm) | 80.7 |
| H | WHEELBASE (mm) | 614 |
| I | CHAIN STAY LENGTH (mm) | 257 |
| J | BOTTOM BRACKET DROP (mm) | 28 |
| K | STACK (mm) | 287 |
| L | REACH (mm) | 214 |
| M | STAND OVER HEIGHT (mm) | 344 |
| N | HANDLEBAR WIDTH (mm) | 470 |
| O | STEM LENGTH (mm) | 40 |
| P | CRANK LENGTH (mm) | 89 |
| Q | WHEEL SIZE | 12″ |
FEATURES
- Precision reinforced lay-up places carbon fiber only where needed, creating a strong, stiff rim structure weighing in at only 1302 grams.
- Dynamic Balanced Lacing technology produces a stiffer, more efficient wheel with outstanding power transfer.
- High tensile strength CADEX aero carbon spokes minimize lateral flex for more efficient acceleration and climbing.
- The 22.4mm inner rim width creates an increased actual tire contact patch for better traction and impact absorption, better handling, more confidence and less rider fatigue.
- CADEX hookless rim technology features a broad inner rim width and durable continuous carbon fiber structure, helping create a rounder tire shape for superior grip and handling plus added sidewall support when cornering, all without compromising weight.
- The precision machined low-friction R1-C30 hub significantly reduces bearing load as CADEX ceramic bearings further increase efficiency by offering lower rolling resistance and 1.5x smoother action than steel.
- A low 36mm rim profile offers excellent stability in shifting winds.
