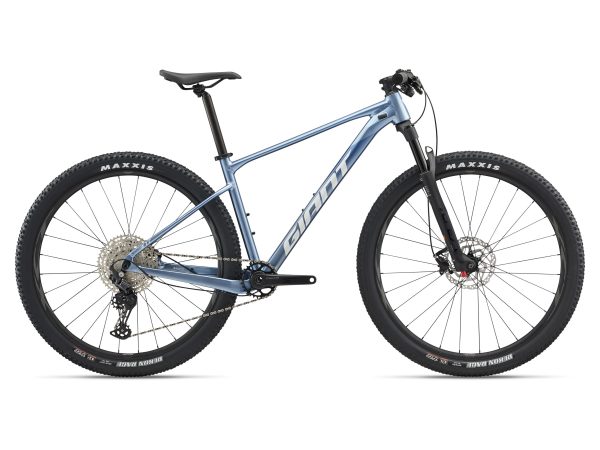

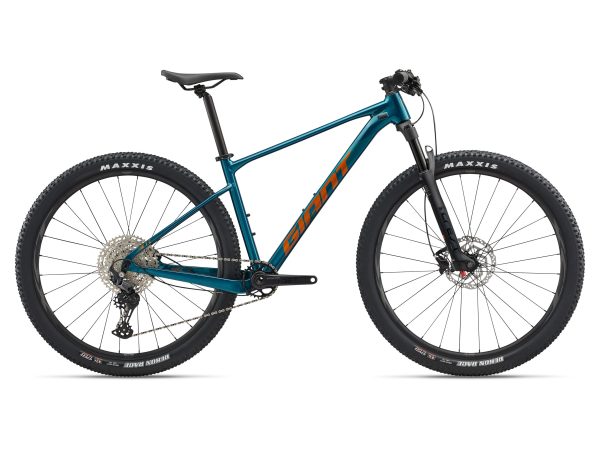

XTC SLR 29 2

New Arrival
-25%

XTC SLR 29 2

$1,161.00 $870.75

Model: 2022

Description

Sizes S, M, L, XL
Colors Knight Shield, Phantom Green

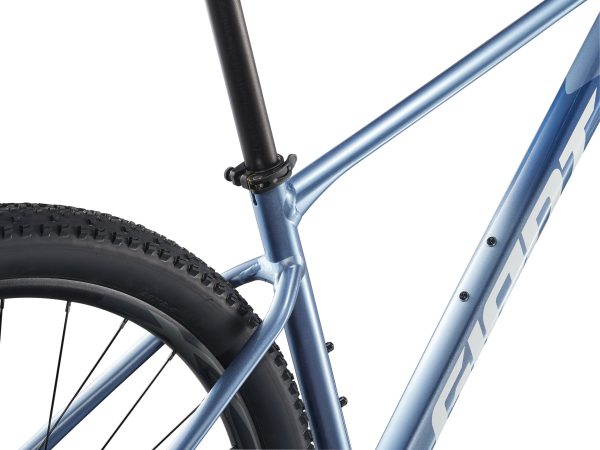

Frame ALUXX SL-Grade Aluminum with horizontal dropouts, 12×197
Fork rigid composite with alloy steerer, 15×150, with low rider rack mounts
Shock N/A
Handlebar Giant Connect Trail, 780×31.8mm
Grips Giant Tactal Single
Stem Giant Contact S:50mm, M:50mm, L:60mm, XL:60mm
Seatpost Giant Connect, 30.9mm S:375mm, M:375mm, L:400mm, XL:400
Saddle Giant Sport Comfort
Pedals N/A
Shifters Shimano Deore, 1×12
Front Derailleur N/A
Rear Derailleur Shimano Deore
Brakes SRAM Level, hydraulic [F]180mm, [R]160mm rotors
Brake Levers SRAM Level
Cassette Shimano Deore M6100, 10×51
Chain Shimano
Crankset ProWheel MPX, 28t S:170mm, M:170mm, L:175mm, XL:175mm
Bottom Bracket ProWheel, press fit
Rims Giant FBR alloy, 27.5″, 85mm
Hubs [F] Giant 15×150 sealed bearing [R] Giant 12×197 sealed bearing
Spokes stainless, 14g
Tires Maxxis Colossus 27.5×4.5, foldable, TR
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Download PDF

Additional information

color

Black, Blue, Red

SIZING GUIDE AND GEOMETRY

  • S
      163 cm  to 172 cm
  • M
      171 cm  to 180 cm
  • L
      179 cm  to 188 cm
  • XL
      187 cm  to 198 cm

S M L XL
LOW | HIGH LOW | HIGH LOW | HIGH LOW | HIGH
A Seat Tube Length (mm) 381 432 483 533
B Seat Tube Angle (degrees) 73.0° 73.0° 73.0° 73.0°
C Top Tube Length (mm) 585 605 625 645
D Head Tube Length (mm) 100 115 130 150
E Head Tube Angle (degrees) 68.5° 68.5° 68.5° 68.5°
F Fork Rake (mm) 60 60 60 60
G Trail (mm) 90.1 90.1 90.1 90.1
H Wheelbase (mm) 1128.6 1149.8 1171.1 1192.7
I Chain Stay Length (mm) 445 | 460 445 | 460 445 | 460 445 | 460
J Bottom Bracket Drop (mm) 75 75 75 75
K Stack (mm) 621.5 635.5 649.4 668
L Reach (mm) 395 410.7 426.5 440.8
M Stand Over Height (mm) 719 735 772 811
N Handlebar Width (mm) 780 780 780 780
O Stem Length (mm) 50 50 60 70
P Crank Length (mm) 170 170 175 175
Q Wheel Size 27.5 27.5 27.5 27.5
